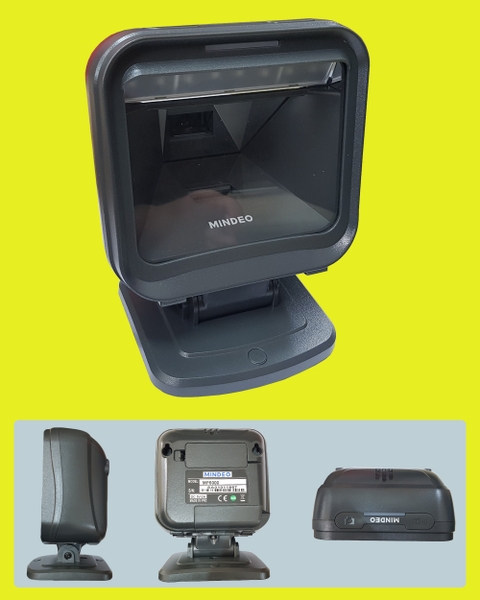

Máy đọc mã vạch đa tia Mindeo MP8000


Mô tả :

Công nghệ quét: Quét ảnh
Độ phân giải quét: 1280x960 pixel
Tốc đô quét: 45fps
Đọc mã vạch 1D
Kết nối: Keyboard USB,RS232,USB Virtual com

Số lượng
- +
Input voltage 5 VDC ± 0.25V
Power 5.00W (working); 0.40W (standby)
Current 1000mA (working); 80mA (standby)
Image size 1280× 960 pixels
Scanning angle ±60°, ±40°, 360° (Skew, Pitch, Roll)
Decode capability UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),  ISSN,
Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5,
Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128,
UCC/EAN   128   (GS1-128),   ISBT   128,   Code   93,   Code   11 (USD-8),
MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants
Indicator Beeper, LED
Interface supported Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
Dimensions Height × Width × Depth:152mm × 81mm × 144mm (without stand);
152mm × 112mm × 184mm (with stand);
Weight 543g (without stand, without cable);
810g (with stand , without cable);
Cable Straight 2.0m
Connector type RJ-45 phone jack connector
Case material PC+TPU
Temperature 0° to 50°C (32° to 122°F), Operating; -40° to 70°C (-40° to 158°F), Storage
Humidity 5% to 95% (non-condensing)
Programming method Manual (reading special barcode)
Program upgrade Online
Min. element width 4mil, 1mil = 0.0254mm
Decoding depth 4mil Code39 (9 chars): 5mm-60mm
5mil Code39 (3 chars): 0mm-100mm
10mil Code39 (3 chars): 0mm-148mm
13mil UPC (6 chars): 0mm-170mm
15mil Code39 (1 chars): 0mm-193mm
  • 20mil Code39 (1 chars):
  • 0mm-220mm
Safety EMC: EN55022, EN55024
Electrical safety: EN60950-1 Photobiological safety: EN62471:2008 Illumination: 0~100,000LUX Protection class: IP52
Drop resistance: 1.5m (5.0ft) drops to concrete
