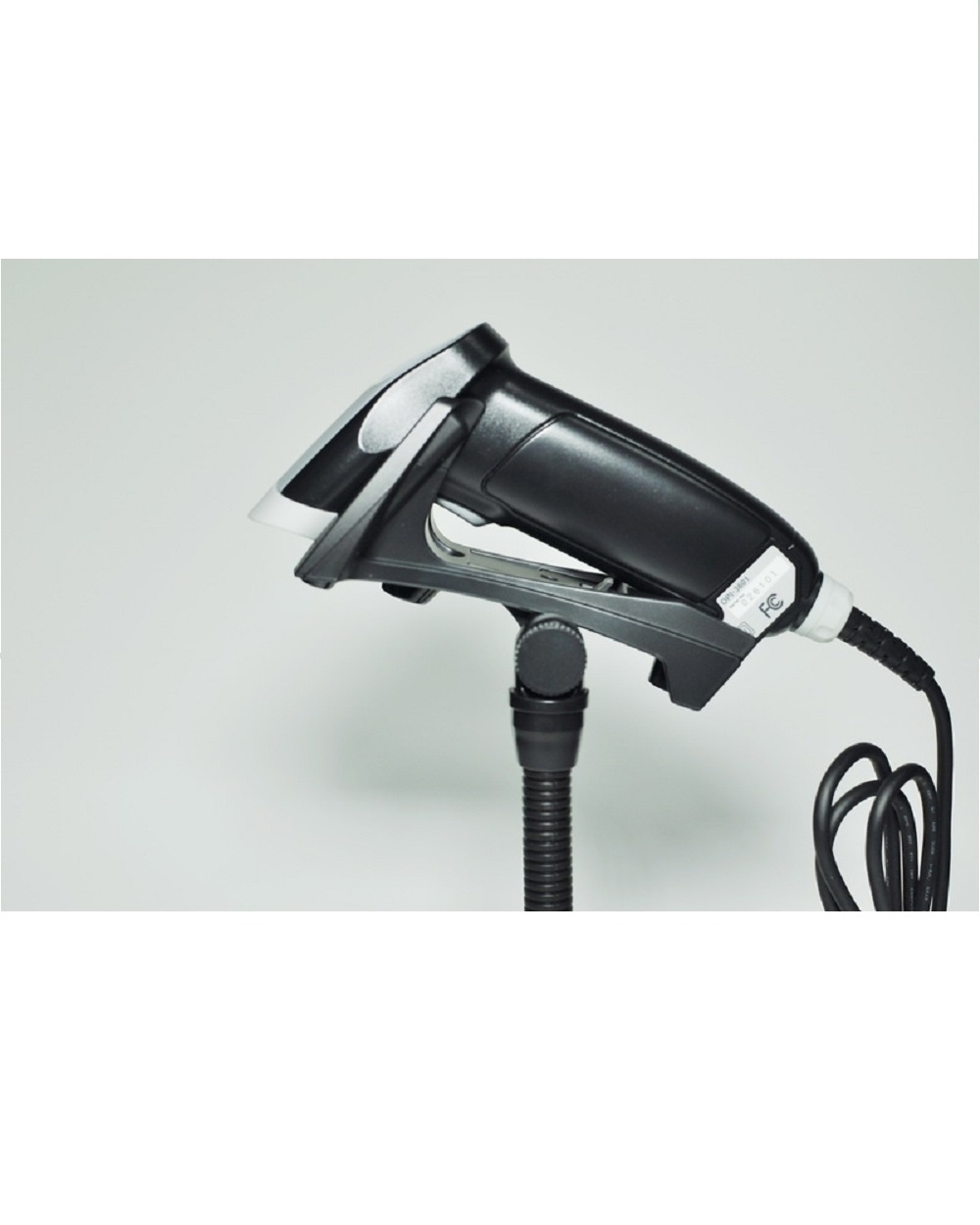

Máy quét mã vạch 2D Opticon 3601

Máy quét mã vạch 2D Opticon 3601

3.940.000₫

Mô tả :

Máy đọc mã vạch chất lượng cao này có thể đọc hầu hết những loại mã vạch, kể cả những loại mã điện tử trên điện thoại di động.

Máy có thể quét trong chuyển động nhanh và hỗ trợ đèn LED trong lúc hoạt động.

Sản phẩm có thể chịu được khi rơi từ độ cao 1.5m xuống mặt sàn bê tông và có thời hạn bảo hành lên đến 2 năm.

Số lượng
- +

Operating indicators


  • Visual
 1 LED (red/green/orange)
  • Non-visual
 Buzzer

Operating keys


  • Entry options
 1 scan key

Communication


  • RS232
 DB9 PTF connector with external power supply
  • Keyboard Wedge
 MiniDIN6 F/M connector
  • USB
 Ver. 2.0, HID/VCP, USB-A connector

Power


  • Voltage requirement
 6V ± 5% (Keyboard Wedge), 6V (min. 4.5, max. 6.5V) (RS232)
  • Current consumption
 Max. 350mA (max typical use), 75mA (standby)

2D Imager Optics


  • 2D Light source
 Green aiming LED, illumination LEDs
  • 2D Scan method
 CMOS area sensor, 752 x 480 pixels, gray scale
  • 2D Scan rate
 60 fps
  • 2D Trigger mode
 Manual, multiple read, auto-trigger, stand detection
  • 2D Image format
 Windows Bitmap, JPEG, TIFF
  • 2D Gradulation
 1024, 256, 16, 2
  • 2D Image output mode
 4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
  • 2D Reading pitch angle
 -50 to 0°, 0 to +50°
  • 2D Reading skew angle
 -50 to 0°, 0 to +50°
  • 2D Reading tilt angle
 360°
  • 2D Focal distance
 104 mm
  • 2D Curvature
 R>16 mm (12-digit 0.15 mm Codabar), R>20 mm (13-digit UPC)
  • 2D Min. Resolution at PCS 0.9
 QR code: 0.127 mm / 5 mil, DataMatrix: 0.169 mm / 7 mil
  • 2D Min. PCS value
 0.3
  • 2D Field of view
 Horizontal 40.6º, Vertical 26.4º
  • 2D Depth of field
 at Code 39: 65 - 105 mm / 2.56 - 4.13 in (0.127 mm / 5 mil), 45 - 185 mm / 1.77 - 7.28 in (0.254 mm / 10 mil) 50 - 250 / ,1.97 - 9.87 in (0.508/20 mil) at QR Code: 70 - 95 mm / 2.76 - 3.74 in (0.212 mm / 8.4 mil), 35 - 165 / 1.38 - 6.50 in (0.381 / 15 mil)

Supported Symbologies


  • Barcode (1D)
 JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
  • Postal code
 Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
  • 2D code
 Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Durability


  • Temperature in operation
 -20 to 50 °C / -4 to 122 °F
  • Temperature in storage
 -20 to 60 °C / -4 to 140 °F
  • Humidity in operation
 5 - 90% (non-condensing)
  • Humidity in storage
 5 - 90% (non-condensing)
  • Ambient light immunity
 Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
  • Drop test
 1.5 m / 5 ft drop onto concrete surface
  • Vibration test
 10 - 100 Hz with 2G for 1 hour
  • Protection rate
 IP 42

Physical


  • Dimensions (w x h x d)
 56 x 148.6 x 108.1 mm / 2.20 x 5.85 x 4.26 in
  • Weight body
 Ca. 85 g / 3 oz (excl. cable)
  • Case
 ABS, Black or White

Regulatory & Safety


  • Product compliance
 CE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
