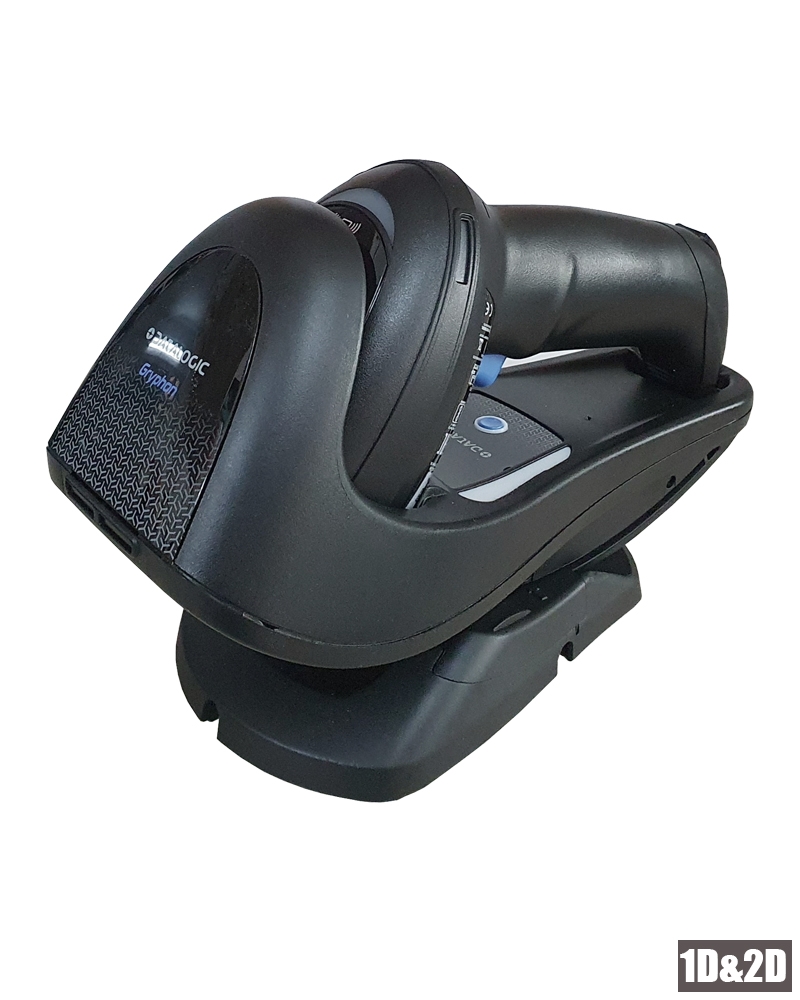

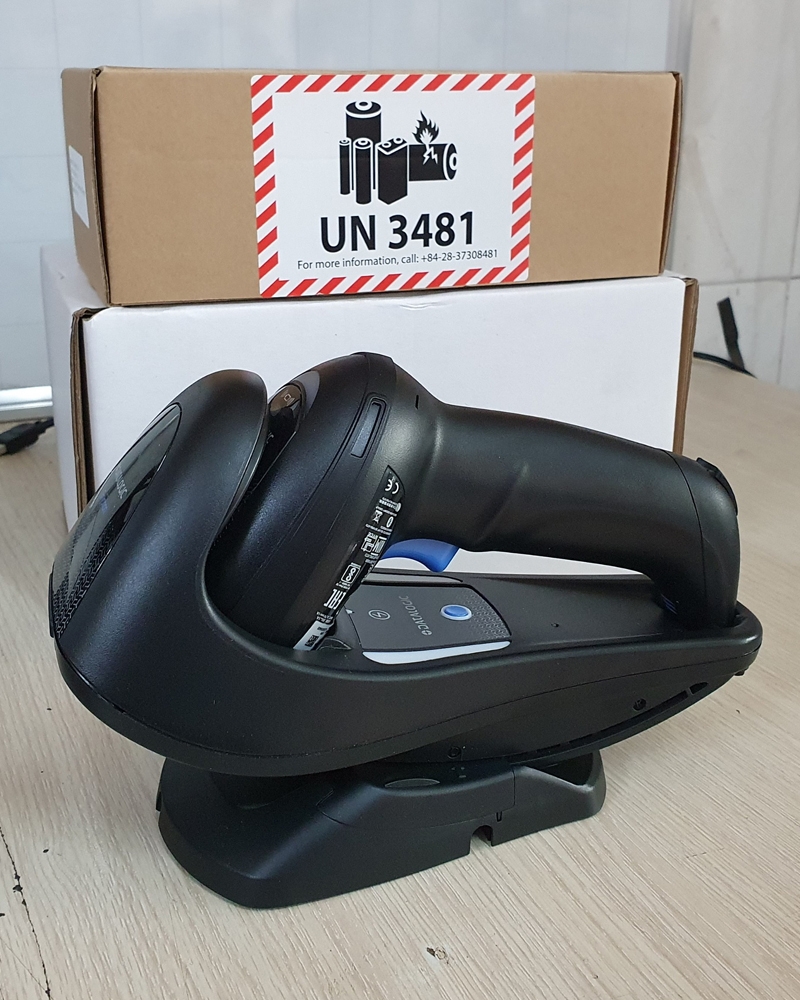

Máy quét mã vạch công nghiệp không dây Datalogic Gryphon GBT4500 (HD)
17.410.000₫
Mô tả :
Máy đọc mã vạch Datalogic Gryphon GBT4500 được thiết kế thanh lịch kiểu dáng tay cầm, giải mã barcode chuẩn 1D, 2D bằng công nghệ hình ảnh 1 Megapixel cho, hiệu suất đọc mạnh mẽ mã vạch trên màn hình điện thoại, mã vạch mờ nhoè và nhiều bề mặt vật liệu khác như giấy tem decal, bao bì. GBT4500 loại máy không dây kết nối bằng công nghệ Bluetooth trong phạm vi 100m với tần số 2.4GHz.
THÔNG SỐ KỸ THUẬT:
Datalogic STAR Cordless System™
Effective Radiated Power: 433.92 MHz: < 6.3 mW;
910 MHz: < 50 mW
Multi-Point Configuration: Max. Readers per Radio
eceiver: 16; Point-to-Point Configuration;
Radio Frequency: 433.92 MHz; 910 MHz;
Two Way Communications
Radio Range (Open Air): 50.0 m / 164.0 ft
Bluetooth® Wireless Technology
Piconet: Max. Readers per Radio Receiver: 7
Profiles: SPP (Serial Port Profile)
Protocol: Bluetooth® 4.0 with BLE Certified Class 1,
Class 2 and Class 3; Radio Frequency: 2.4 GHz
Radio Range (Open Air): 100.0 m / 328.0 ft; Range
distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication
DECODING CAPABILITY
Autodiscriminates all standard 1D codes including
1D / linear codes
GS1 DataBar™ linear codes.
Aztec Code; China Han Xin Code; Data Matrix;
2D codes
MaxiCode; Micro QR Code; QR Code; Dot code
Australian Post; British Post; China Post; IMB; Japanese
Postal codes Post; KIX Post; Planet Code; Postnet; Royal Mail Code
(RM4SCC)
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
Stacked codes
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking Digimarc Barcodes
ELECTRICAL
Battery Type: Lithium-Ion: 3250 mAh
Battery Charge Time: External Power: 4 Hours @ 12 VDC;
Reads per Charge: 80,000
Battery Charging (flashing orange); Charge
Cradle Indicator LEDs
Completed (steady green)
Charging (Typical): < 6 W;
Current Scanner only: 330 mA @ 3.7 V (Operative)
Cradle only: 80 mA @ 5 V (Operative)
Input voltage 4.5 - 14 VDC +/- 5%
ENVIRONMENTAL
Ambient light 0 - 100,000 lux
Withstands repeated drops from 1.8 m / 6.0 ft onto a
Drop resistance concrete surface.
ESD Protection (Air Discharge) 16 kV Humidity (Non-Condensing) 0 - 95% Particulate and Water Sealing IP52
Operating: 0 to 50 °C / 32 to 122 °F
Temperature
Storage/Transport: -40 to 70 °C / -40 to 158 °F
INTERFACES
Interfaces RS-232 / USB / Keyboard Wedge Multi-Interface
PHYSICAL CHARACTERISTICS
Colors Available Black; White
Dimensions 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in
Weight 235 g / 8.29 oz
ACCESSORIES
Base Stations/Chargers
WLC4090-BK-BT / WLC4090-WH-BT: Bluetooth® Base station; Wireless Charger; Multi-Interface (Black / White)
WLC4090-BK-433 / WLC4090-WH-433: 433 MHz Base
station; Wireless Charger; Multi-Interface (Black / White)
WLC4090-BK-910 / WLC4090-WH-910: 910 MHz Base
station; Wireless Charger; Multi-Interface (Black / White)
READING PERFORMANCE
Graphic Formats: BMP, JPEG, TIFF;
Image Capture
Greyscale: 256, 16, 2
Image Sensor 1 Megapixel: 1280 x 800 pixels
Aiming: Red Laser 650 nm
Light source Illumination: Warm White; Hyper Red LED for
Digimarc
Motion tolerance 35 IPS
Print contrast ratio (minimum) 15%
Reading angle Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
Beeper (adjustable tone); Vibration feedback option available for quiet places; Datalogic Three Green
Reading indicators
Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
High Density (HD): 1D Linear: 0.077 mm / 3 mils;
PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils
Resolution (maximum)
Standard Range (SR): 1D Linear: 0.102 mm / 4 mils;
PDF417: 0.127 mm / 5 mils;
Data Matrix: 0.195 mm / 7.5 mils
READING RANGES
Minimum distance determined by symbol length and
Typical depth of field scan angle. Printing resolution, contrast, and ambient light dependent.
GD4500 Standard Range (SR) GD4500 High Density (HD)
Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in
Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 in Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in
Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in
EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in EAN-13: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in
PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in EAN-13: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in
PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in
QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
SAFETY & REGULATORY
The product meets necessary safety and regulatory approvals for its intended use.
