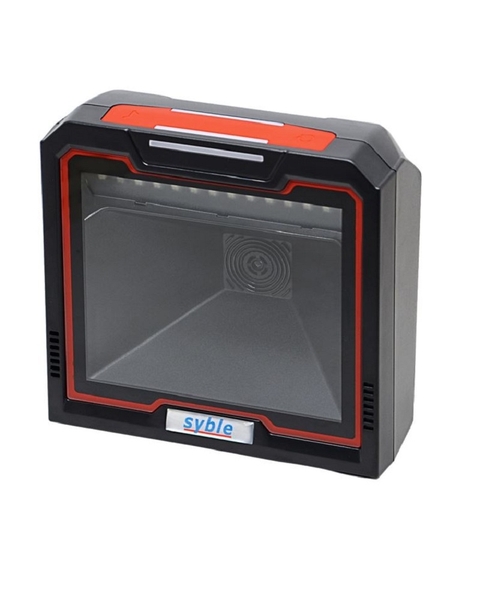

Máy quét mã vạch để bàn Syble XB-8808


Mô tả :

Quét được các loại mã 1D và 2D
Thiết kế để bàn
Cho hiệu suất quét cực cao, công nghệ quét ảnh cực nhạy
Kết nối cổng USB

Số lượng
- +

Tech Parameters

Model   Number XB-8808
Performance Parameters
Light Sources SXGA-W(Width1280*high1024) Ratio(5:4)
Supported Symbologies 1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1   DataBar(RSS14)、GS1   DataBar Limited、GS1 DataBar Expanded.
2D:PDF417、MicroPDF417、QR-code、MicroQR,   Data Matrix、QR、Aztec.
Scan Range 5mil(Code39) 1cm~15cm; UPC-13mil   1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm
System compatibility Linux、Android、Windows XP、7、8、10、MAC
Minimum recognition accuracy Code 39 4mil
Barcode Type 1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets
Motion tolerance 3.8meters/second
Scan Mode Automatic continuous reading mode
Support Keyboard Support Multi-Language
Barcode output editing Support for adding suffixes
Print contrast 20%
Recognition angle range Turn angle ±360°, elevation angle ±60°, declination angle ±70°
Mutual Move Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.
Beeper: Startup prompts, reading tips.
Keys (touch keys): Key Switch and 2d   barcodes.
Interfaces USB(Drive - Free)、RS232
Physical Parameters
Dimensions 119mm*135mm*166mm
Weight 390g
Material ABS+PC
Cable Length 180CM(±3CM)
Environmental Parameters
Operating Temperature -20℃~55℃
Storage Temperature -20℃~60℃
Relative Humidity 5%~95% RH(non-condensing/non-freezing)
Shock Resistance: Withstands three times1 . 5 meters drops to concrete
Waterproof and Dustproof IP54 standard
Ambient Ligh 0-70000LUX
Electrical Parameters
Working Voltage DC5V
Power USB Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W
Maximun Operating Power 0.481mA/2.405W.
RS232 Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W;
Maximun Operating Power 0.484mA/2.42W
