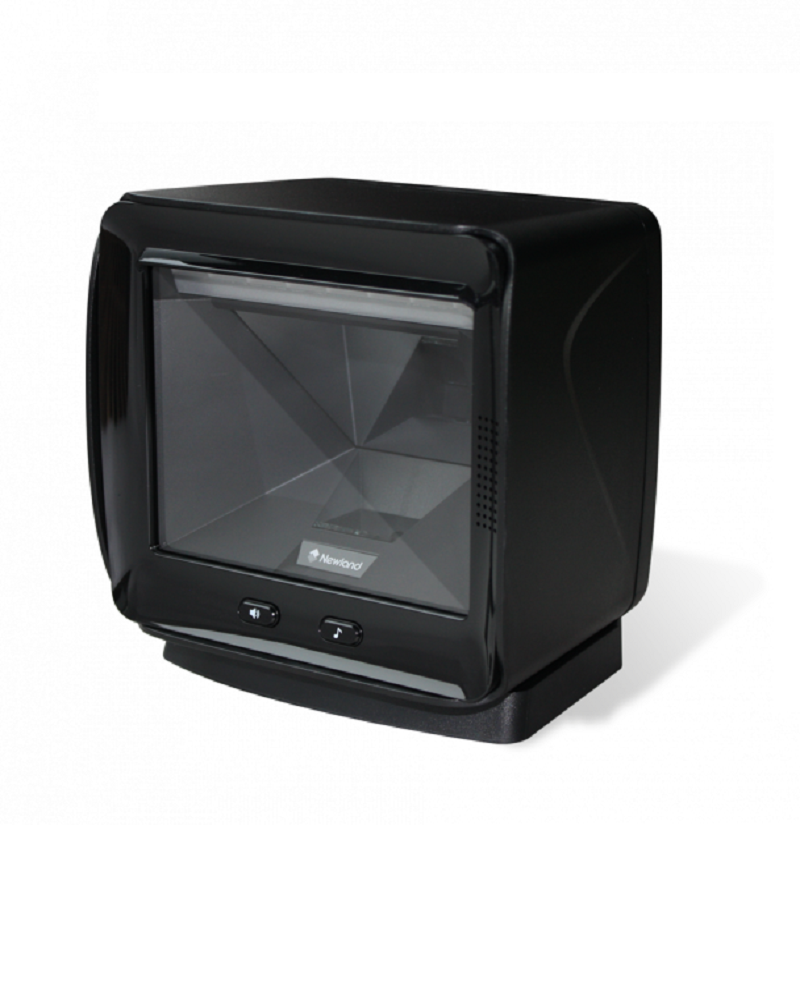

Máy quét mã vạch Newland NLS-FR80
3.190.000₫
Mô tả :
Máy quét mã vạch Newland NLS-FR80 là dòng máy quét để bàn cao cấp của hàng Newland.
Độ phân giải cao, cho khả năng đọc các mã 1D và 2D cực tốt.
Thiết kế nhỏ gọn, hoàn thiện cứng cáp, kết nối qua cổng USB.
| Image Sensor | 1280x1080 CMOS |
| Illumination | Red LED (614nm-624nm) |
| Depth of Field EAN 13 (13mil) | 0mm-180mm |
| Minimal Print Contrast | >15% |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±55° |
| Scan Angle Skew | ±50° |
| Field of View Horizontal | 42.4° |
| Field of View Vertical | 36° |
| Scan Modes | Advanced sense mode |
| Motion Tolerance | 3.5m/s |
| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K. |
| 2D | All major 2D symbologies, including PDF417, QR Code, Data Matrix, Chinese Sensible Code, Micro PDF417, GM Code, Micro QR, Code One. |
| Dimensions (mm) | Without base: 151 (W) x 141.5 (H) x 97.5 (D) mm; With base: 151 (W) x 156.5 (H) x 108.5 (D) mm |
| Weight | 542g (without base), 678g (with base) |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5 VDC±5% |
| Current @ 5VDC Operating | 500mA (typical) |
| Current @ 5VDC Standby | <100mA |
| Power Consumption | 2W (typical), 2.5W (max.) |
| Operating Temperature | -20°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
| IP Rating | IP52 |
| Standard | USB cable used to connect the FR80 to a host device; DC 5V power to power the FR80 |
| Configuration Tools | EasySet |
| Hardware | FCC Part 15 Class B, CE EMC Class B |
